Article number:
9-790524
- TPMS valve for trucks
- Valve length: 41 mm
- Partially assembled version with round head cap

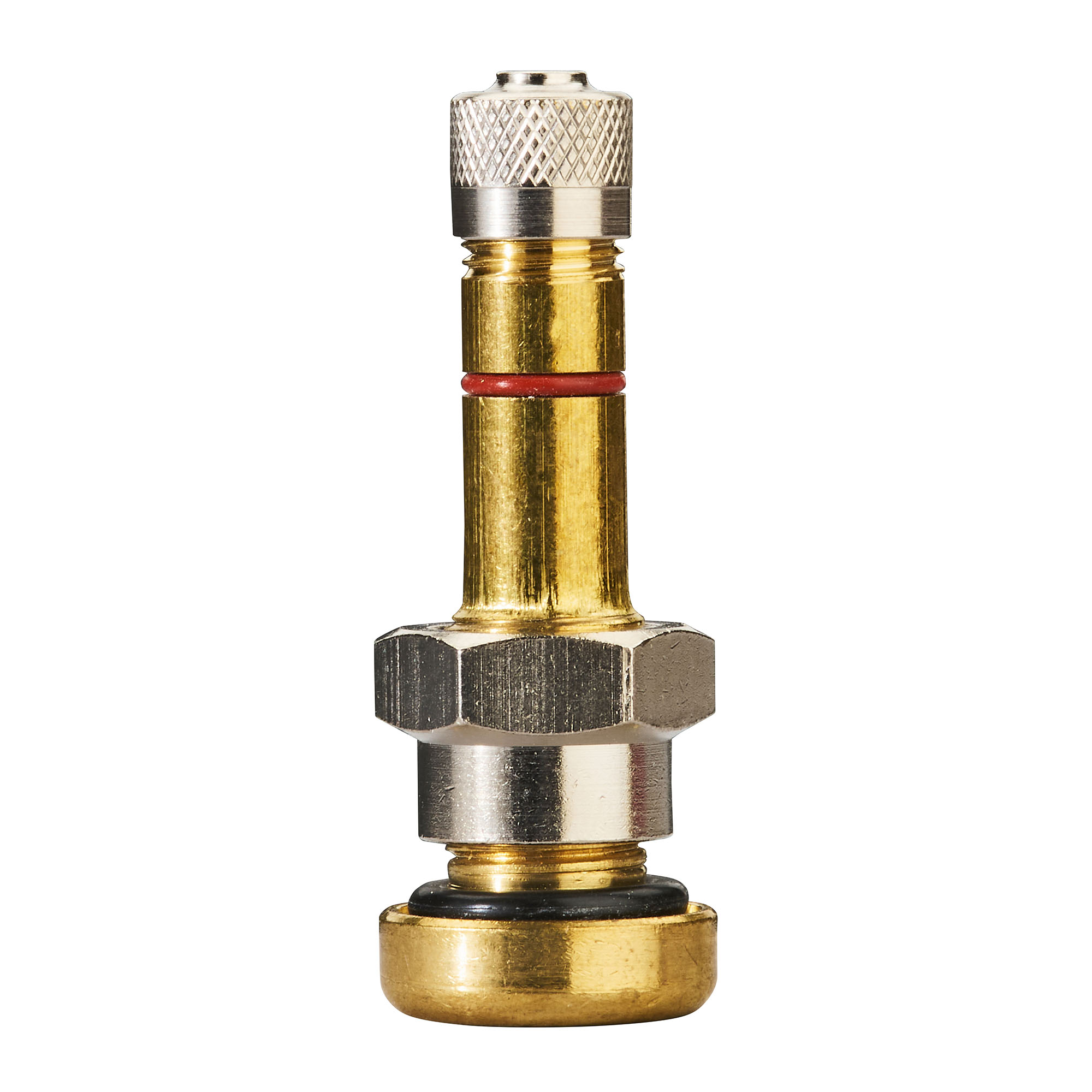

Product information "Truck TPMS valve, RDK 41MS"
TPMS valve RDK 41MS for trucks with direct tire pressure monitoring system - partially assembled version with metal round head cap and screw connection system for connecting the sensor. Incl. screw M6, Torx TX20 (9-031025)
- Valve hole: 9.7 + 0.3 mm
- Valve length: 41 mm
- Material: brass
- Pressure range: up to 14 bar
- Tightening torque nut: 12 – 15 Nm
- Tightening torque screw: 4 ± 0.5 Nm
Technical Information
"Truck TPMS valve, RDK 41MS"
| Tyre Make: | schlauchlos |
|---|---|
| Pressure bar max: | 14.0 |
| Diameter rim bore mm: | 9.7 |
| EAN: | 4049256158512 |
| Weight unit: | G |
| Unit to packaging type quantity: | Stück |
| Cap Colour: | Silber |
| Material: | Messing |
| Cap material: | Metall |
| Valve stem material: | Messing |
| Customs tariff number: | 84818040 |
Programming device - PT1
Article number: 9-590922
Only sens.it sensors can be programmed with the ALLIGATOR sens.it programming device PT1. A readout function was deliberately omitted. Thus, the device is the ideal and cost-effective addition to wireless TPMS hand tools. The sens.it sensors are programmed quickly and easily using the free sens.it software on a PC or notebook with a Windows operating system. The software guides the user intuitively through the programming process and rules out operating errors. Thanks to the online connection, the software is always up to date and new vehicle models are added automatically.
TPMS sensor typesens it
Price after login
Programming device - PT3
€394.19*
Article number: 9-030229
Handy wireless TPMS programming and diagnostic device PT3 (433 MHz) from ALLIGATOR with intuitive operation and free sens.it software updates for 5 years.Features:- Ability to read all TPMS sensors.- Programming and cloning of ALLIGATOR sens.it sensors.- Built-in OBD2 diagnostic module.- Integrated teach-in procedure. - Information in 23 languages.Scope of supply: - 1x PT3- 1x charger- 1x USB cable- 3x socket adapter- 1x instruction manual
TPMS sensor typesens itVehicle typepassenger car
Programming device - TECH350
€413.12*
Article number: 9-590924
The basic diagnostic device Tech 350 by Bartec can be used to program ALLIGATOR sensors as well as all common sensors from other manufacturers. In addition, the entry-level device can copy already programmed sensors and create ID’s. The color display has a size of 2.8 inches. Updates are free of charge for one year and can be extended by one year thereafter. The teach-in process can be controlled via the OBD or can be performed automatically or manually.Display: 2.8"" colour displayWLAN: noBluethooth: noTeach-in process: OBD teach-in, automatic teach-in, manual teach-inUpdate support: 1 year free of charge (thereafter expandable by 1 year)Bundle: no
Programming device - TECH600
€600.53*
Article number: 9-590923
The professional diagnostic device Tech 600 by Bartec can be used to program ALLIGATOR sensors as well as all common sensors from other manufacturers. In addition, the professional device can copy already programmed sensors and create ID’s. Display: 2.8"" colour displayWLAN: yesBluethooth: yesTeach-in process: OBD teach-in, automatic teach-in, manual teach-inUpdate support: 1 year free of charge (thereafter expandable by 1 year)Bundle: 9-590940 (1x Bartec Tech 600, 24 x ALLIGATOR sensors, 24 x ALLIGATOR valves)
Programming device - VT47
€620.20*
Article number: 9-590926
With the basic diagnostic device VT47 by ATEQ, you can program ALLIGATOR sensors as well as all common sensors from other manufacturers. In addition, the entry-level device can copy already programmed sensors and create ID’s.Display: 2.8"" colour displayWLAN: yesBluethooth: yesTeach-in process: OBD teach-in, automatic teach-in, manual teach-inUpdate support: 3 years free of charge (thereafter expandable by 1 year)Bundle: no
Programming device - VT57
€930.82*
Article number: 9-590925
With the professional diagnostic device VT57 by ATEQ, you can program ALLIGATOR sensors as well as all common sensors from other manufacturers. In addition, the professional device can copy already programmed sensors and create ID’s.Dislay: 4.3"" colour touch displayWLAN: yesBluethooth: yesTeach-in process: OBD teach-in, automatic teach-in, manual teach-inUpdate support: 3 years free of charge (thereafter expandable by 1 year)Bundle: 9-59093 (1x ATEQ VT57, 24 x ALLIGATOR sensors, 24 x ALLIGATOR valves)
Software & OBD VT57 Truck
Article number: 9-030237
This digital software license, including a truck OBD II connector, allows you to configure and program ATEQ with your existing VT57 truck sensors after entering the VT Tool into the web interface without having to purchase a new tool.
The license is a pure upgrade to truck TPMS and does not extend your original license. Therefore, the term depends on your existing license and opens the tool for truck TPMS once.
If you already have an OBD II connector for trucks or do not need it, you can also purchase the license alone under item number 9-030236.
Price after login
NEW
TPMS car Universal sensor, sens.it RS+, 433 MHz, with silver Alu valve
€22.43*
Article number: 9-591132
The ALLIGATOR sens..it RS+ universal sensor speaks the language of your car, so thanks to simple just-in-time programming you don't need to keep a large stock of vehicle-specific spare parts. With a coverage of 99.7%, the sensor with a self-learning angle-adjustable (12-40°) aluminium valve is always the right choice. In addition to its high level of compatibility, the Senso voelen offers OEM functionality and a long service life thanks to the high-quality lithium button cell. The sensor is compatible with all standard diagnostic and programming devices on the market.
SPECIFICATIONS
Vehicle type: Passenger car
Valve hole: 11.3 mm
Valve colour: silver
Valve material: Aluminium valve
Fastening: Screw system (M5 Torx TX15)
Frequency range: 433 MHz
PU: 12 pieces
You can find the complete cover list here: coveragelist-sens.it-RS_en.pdf (sensit.biz)
NEW
TPMS car universal sensor, sens.it RS+, 433MHz, with black rubber valve, fixed
€22.43*
Article number: 9-591134
The ALLIGATOR sens..it RS+ universal sensor speaks the language of your car, so thanks to simple just-in-time programming you don't need to keep a large stock of vehicle-specific spare parts. With a coverage of 99.7%, the sensor with a black rubber valve is always the right choice. In addition to high compatibility, the sensor offers full OEM functionality and a long service life thanks to the high-quality lithium button cell. The sensor is compatible with all standard diagnostic and programming devices on the market.
SPECIFICATIONS
Vehicle type: Passenger car
Valve hole: 11.3 mm
Valve colour: Black
Valve material: Rubber valve
Max. Max. speed: 210 km/h
Fastening: Screw system (M5 Torx TX15)
Frequency range: 433 MHz
PU: 12 pieces
You can find the complete cover list here: coveragelist-sens.it-RS_en.pdf (sensit.biz)
NEW
TPMS car Universal sensor,sens.it RS+ , 433 MHz, with black Alu valve
€22.43*
Article number: 9-591136
The ALLIGATOR sens..it RS+ universal sensor speaks the language of your car, so thanks to simple just-in-time programming you don't need to keep a large stock of vehicle-specific spare parts. With a coverage of 99.7%, the sensor with a black angle-adjustable (12-40°) aluminium valve is always the right choice. In addition to high compatibility, the sensor offers full OEM functionality and a long service life thanks to the high-quality lithium button cell. The sensor is compatible with all standard diagnostic and programming devices on the market.
SPECIFICATIONS
Vehicle type: Passenger car
Valve hole: 11.3 mm
Valve colour: Black
Valve material: Aluminium valve
Fastening: Screw system (M5 Torx TX15)
Frequency range: 433 MHz
PU: 12 pieces
You can find the complete cover list here: coveragelist-sens.it-RS_en.pdf (sensit.biz)
TPMS tool kit - 13 parts
Article number: 0401-0022-500
Why TPMS Service Kits?Whenever a tyre is changed, the appropriate parts kit should be used to replace the wearing parts (nut, sealing ring, valve core or valve cap). Possible consequences of TPMS tool malfunctions may include Loss of pressure in the tyre, flat tyre, damage to the complete sensor or even loss of vehicle control. Why RDKS Service Kits from Hofmann?Hofmann Power Weight is the only supplier to offer 100% coverage of all new European vehicles from 2014. With RDKS sensors in OE quality the best work results are achieved. In addition, quality seals guarantee maximum resistance even under extreme conditions. The individual metal components are also treated with the latest corrosion protection technology.Mounting tips TPMS tool:Before installation, check whether the vehicle is already equipped with a direct tyre pressure monitoring system.During the disassembly of the RDKS sensor, no pressure must be applied to the tyre pressure sensor.If the sensor can still be used, the appropriate TPMS Service Kit must be determined.For mounting the tyre pressure monitoring system kit, please use nickel-plated valve cores and valve caps with sealing ring.If you screw the new valve to the RDKS sensor, the correct torque must be observed.
Degree of assemblyassembledDrive size in inches1/4 InchContents13
Price after login
